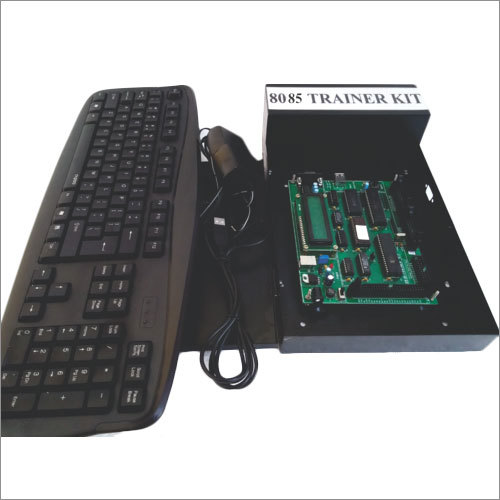

8085 Microprocessor Trainer

8085 Microprocessor Trainer
8085 Microprocessor Trainer
Product Code : 437
Brand Name : 8085 Microprocessor Trainer
Product Description
The OHM 8085 board is based on Intel 80 81 Microprocessor, which operates at 6.144 MHz The board

can operate using the 101/104 PC keyboard supplied along with the trainer kit and 2 Line by 16-character

LCD display or from the PC .

Microprocessor’s Address, Data and Control bus pins are brought to the 50-pin FRC connector. OHM

8085 is equipped with powerful software monitor in 27C128 EPROM.

The monitor supports Video terminals RS232C interface, 101keyboard and LCD display. The board has

32KB CMOS static RAM (type 62256),

    8081 Microprocessor operating at 6.144 MHz

    16KB powerful software monitors 27C128 EPROM.

    Three 16 bit programmable timers from 8253/8254.

    48 Programmable I/O lines from two nos. of 8255.

    Serial interface using 8251.

    50 Pin FRC connector for system bus expansion.

    20 pin FRC connectors for user interface from 8255.

    9 Pin D type female connector for RS 232C interface and 9 Pin.

    Six numbers of selectable baud rates from 150 to 9600.

    101 PC type keyboard for entering user address/data and for commands.

    Built in line-by-line Assemble and Disassemble.

    Facility to connect to PC.
