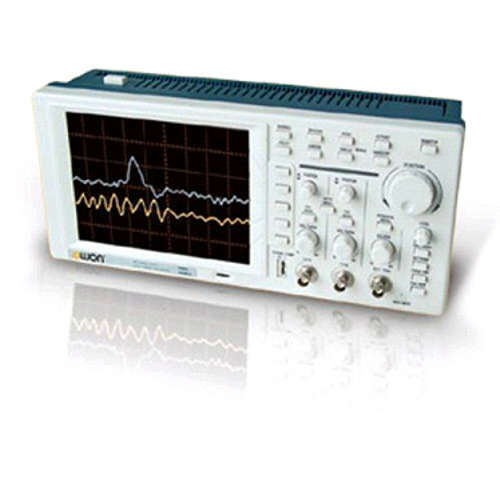

Digital Storage Oscilloscope

Digital Storage Oscilloscope
Digital Storage Oscilloscope
Product Code : 440
Brand Name : Digital Storage Oscilloscope
Product Description

Our company is engaged in offering a comprehensive range of Digital Storage Oscilloscope. This high performing Digital Storage Oscilloscope is available in the market under thebrand nameOwon’. The general application of these instruments include Design and debug in electron circuitry, Industry controlling and power measure, View moment signal, Test in the manufacture, Education and training and Serving and maintaining.



Brand Name: Owon



Specification

Model

PDS5022

Display

7.8’’ STN LCD

Bandwidth

25 MHz

Channels

Dual

External trigger inputs

Present on all this series

Real-time sample rate

100MS/s

Record length

6K points per channel

Vertical Resolution

8-bits

Vertical sensitivity

5mV-5V/div

DC Vertical Accuracy

±5%

Max Input Voltage

300V CAT II

Position Range

±50V(500mV 5V),±2V(5mV 200mV)

Input Coupling

AC,AD

Input Impedance

1MΩ±2% in parallel with 20pF±3 pF

Time base range

5ns-5s/div

Time Base Accuracy

100ppm

Trigger modes

Auto, Free Run, Single shot, Edge, Video

Power

Power

100-240 VACRMS 50Hz CAT II

Mechanical specifications

Size

350mm×157mm× 120mm

Weight

1kg
