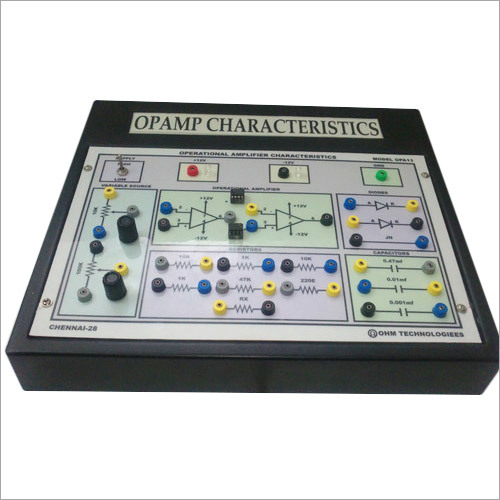

Opamp Circuit Trainer

Opamp Circuit Trainer
Opamp Circuit Trainer
Product Code : 99
Brand Name : Opamp Circuit Trainer
Product Description

Objective:


  • To learn the basic circuit and the various application circuit of the operational amplifier

  • The following are the experiments can be conducted in our trainer;

  • Built in regulated power supply

  • To find slew rate

  • To calculate common mode rejection ratio [cmrr]

  • To study the operation of the voltage follower, non- inverting amplifier [both ac & dc], inverting amplifier [ac]

  • To find input bias current and offset voltage, input impedance

  • To conduct summing amplifier and differential amplifier

  • Integrator and its application

  • Oscillator – a) phase shift oscillator, b) quadrature oscillator, voltage comparator

  • Application of multi vibrator and ic 555 timer characteristics

  • Frequency to voltage converter and vice versa

  • Precision half and full wave rectifier all filters [low, high, band pass and band reject]
