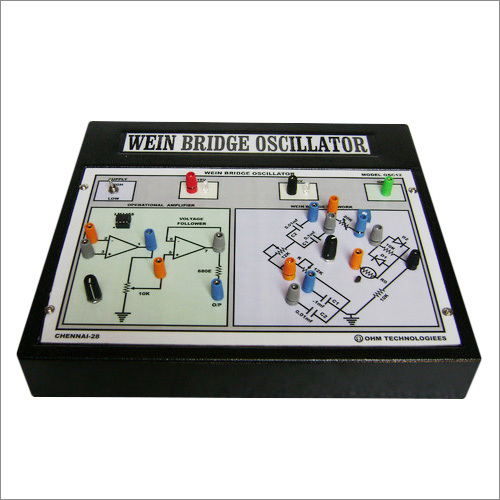

Wien Bridge Oscillator Opamp Version

Wien Bridge Oscillator Opamp Version
Wien Bridge Oscillator Opamp Version
Product Code : 210
Brand Name : Wien Bridge Oscillator Opamp Version
Product Description

Objective:



  • To construct the wien bridge oscillator.

  • to determine the resistor ratio which is required to generate the degenerative feedback

  • By varying the r and c value in the bridge network and observe the changes in frequency.



Technical Specification :



  • Built in power supply : 15V- 0-15V AC

  • Mains : 230V AC

  • Dimension : 27CMS X 17CMS [metal cabinet]

  • Weight : 2KGS APPX
